Lattice Suspended Ceiling

Lattice suspended ceiling systems are opencell ceilings. It provides an uninterrupted appearance with its rectangular or square shaped cells of different sizes, T-carrier and hanging system assembly details.

Lattice ceiling systems add depth to the place where it is located, and allow the space to have a dynamic design. Thanks to the cell spaces in the lattice ceiling, the installation behind can be easily intervened. Lattice ceiling systems are formed by mounting lattice panels on the wires hanging from the system.

Sistem Özellikleri

♦ Panels are produced using aluminum or galvanized sheet with 0.50mm, 0.55mm and 0.60mm thickness.
♦ There are perforation options with different diameter holes. Although Ø2.5mm perforation is standard, there is also Ø1.5mm perforation option.
♦ The back of the panels is covered with locally produced or imported acoustic non-woven textile fabric.
♦ Panels can be either unperforated or without fabric backing.
♦ Panels are standard RAL 9010 color. It can be painted in the desired color according to the RAL code with electrostatic powder paint.
♦ The panels are easily disassembled, there is easy access to the installation hidden in the ceiling cavity.
♦ Straight edge panels are mounted with T15 or T24 visible carriers.
♦ It can be installed with other ceiling elements such as lighting fixtures, air conditioning and ventilation ducts, fire extinguishing springs without any problems.

Where to use?

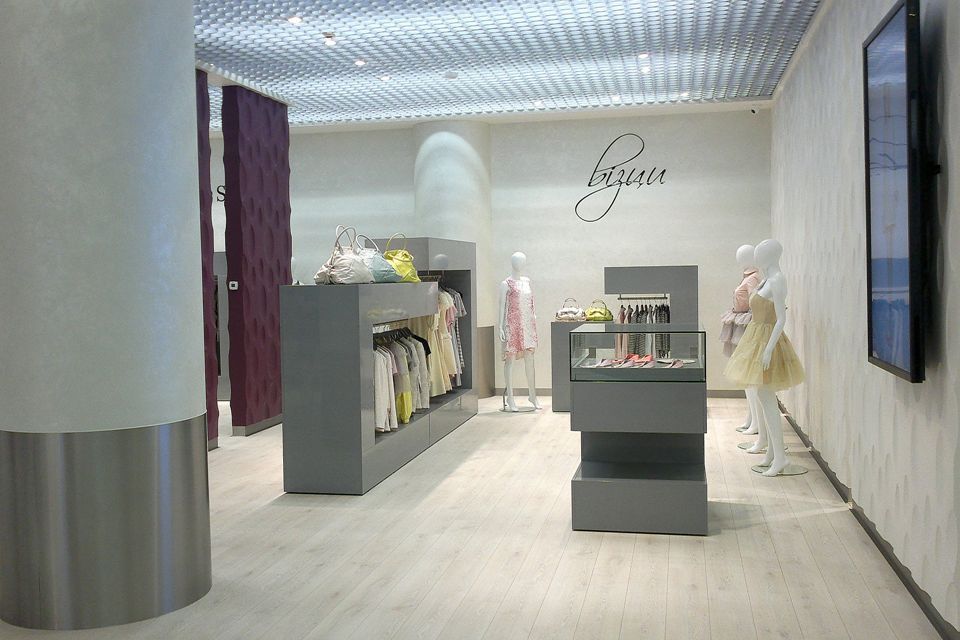

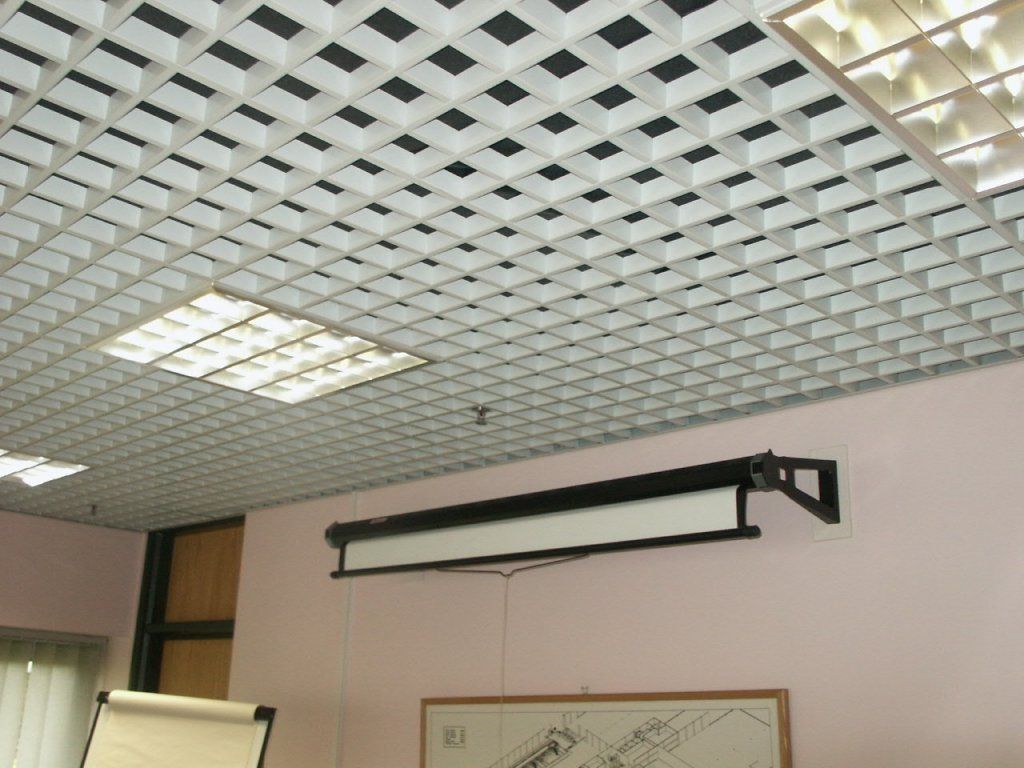

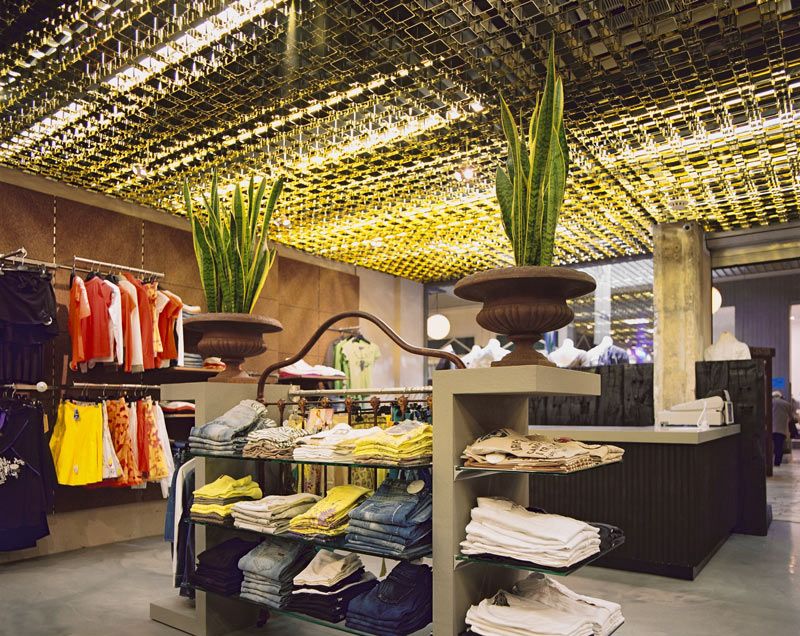

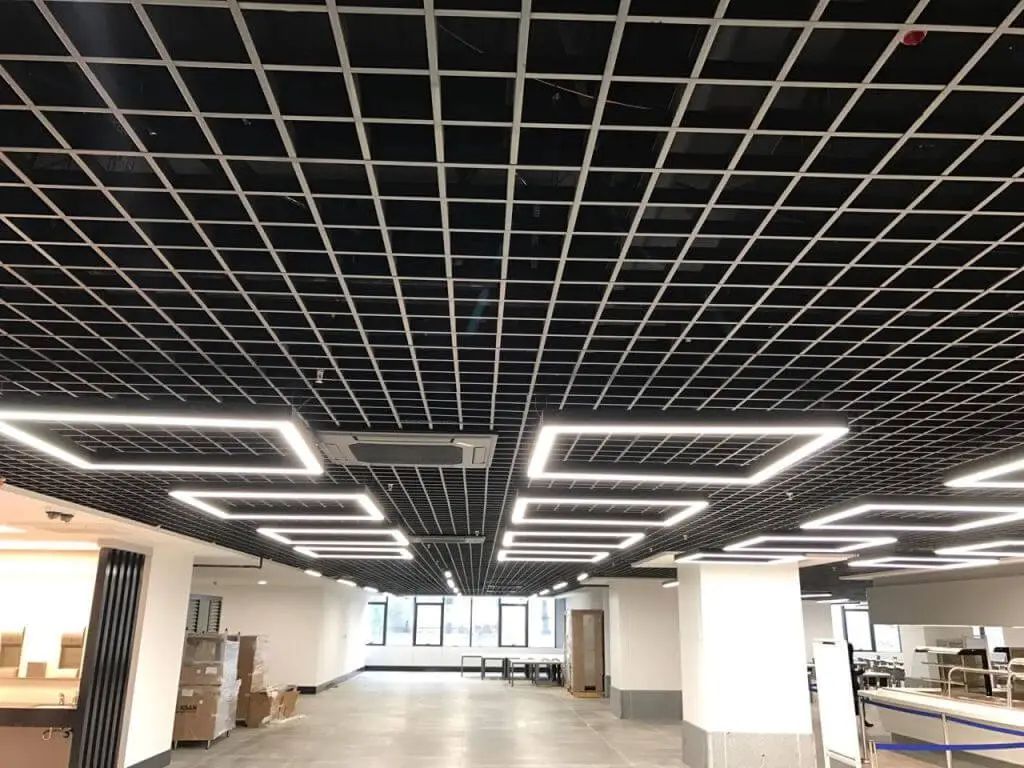

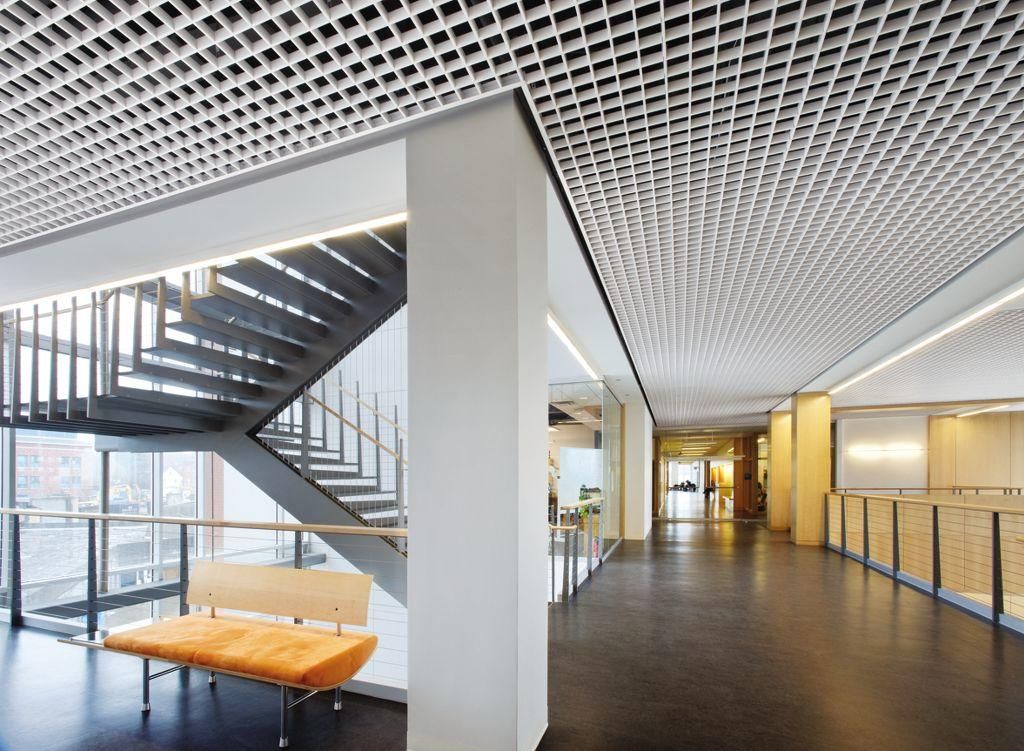

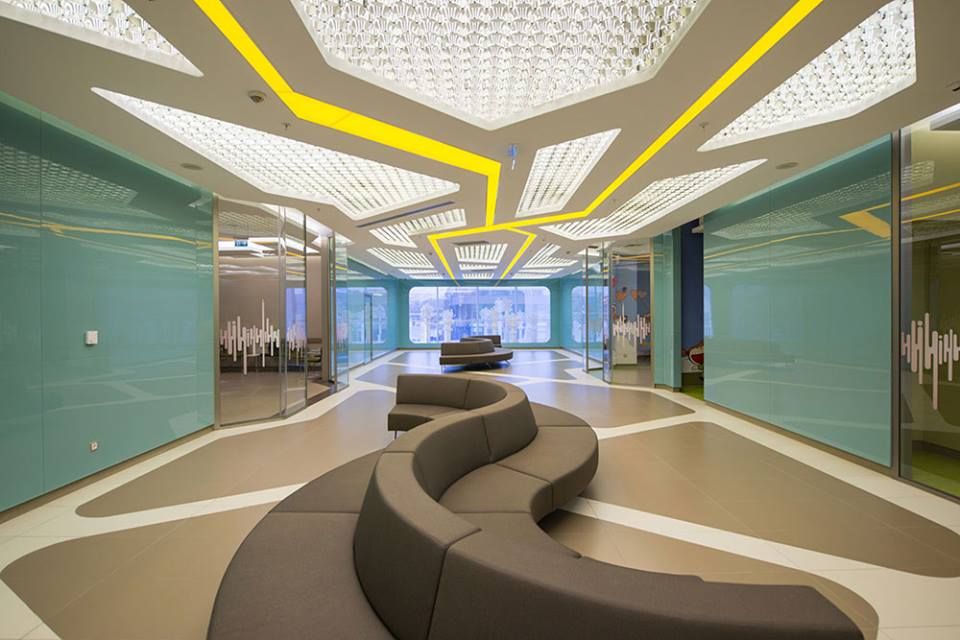

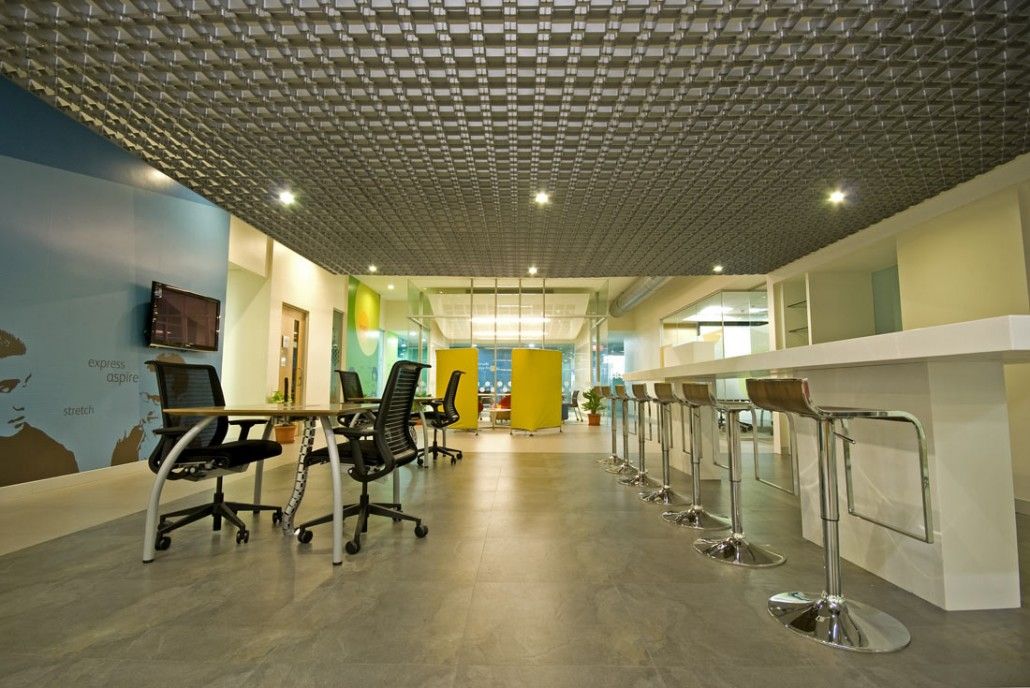

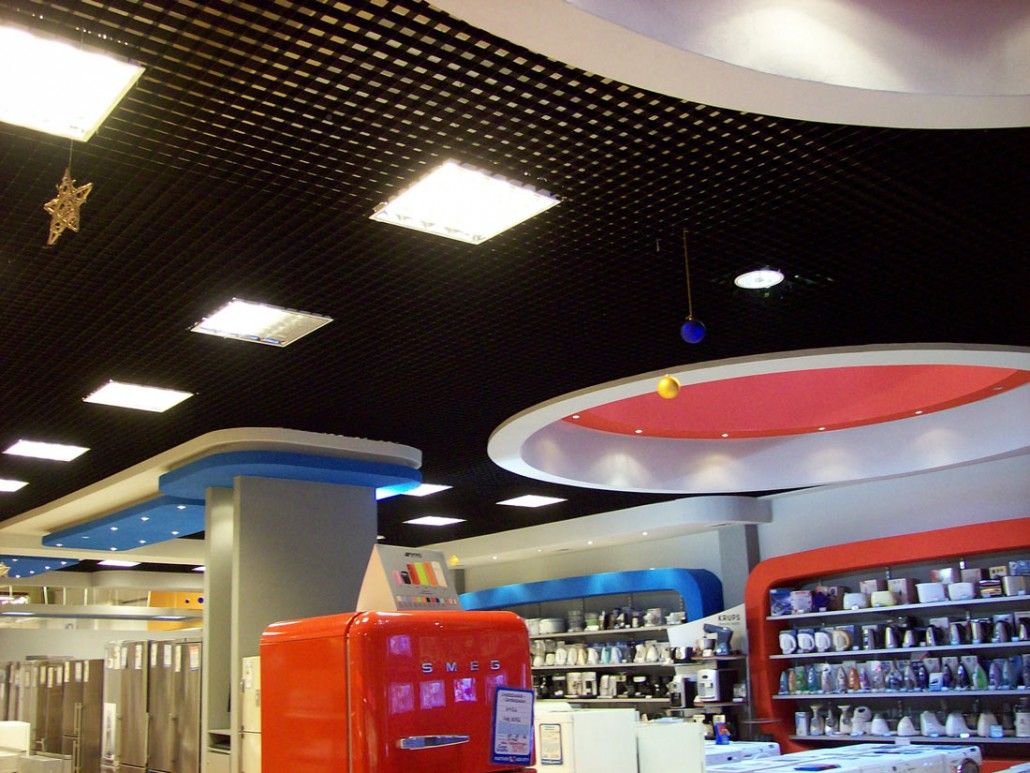

Due to its modularity, it can be used in shopping malls, plazas, offices, hospitals and airports. It helps to achieve an uninterrupted lattice appearance with its elegance in these areas. It is fire resistant and easy to clean.
